| BF518 Blackfin處理器開發方案 |
| [ 作者：admin ] [ 來源：ADSP開源社區 ] [ 發布時間：2012/8/23 ] |
|
ADI公司的ADSP-BF518F EZ-Board評估系統是用來評估ADSP-BF518F Blackfin處理器的功能,處理器的I/O電壓為3.3V,核電壓由 DP1715和AD5258來控制,而Blackfin 處理器ADSPBF518F,采用ADI/Intel微信號架構(MSA),集成了雙MAC信號處理引擎,具有正交RISC類微處理器指令集,單指令多數據(SIMD)多媒體功能,主要用在工業控制,馬達控制,儀器儀表,Femto基站,網絡音頻,VoIP等領域.本文介紹了ADSP-BF518主要特性,方框圖,Blackfin 處理器核框圖,以及ADSP-BF518F EZ-Board評估板主要特性,方框圖,電路圖和材料清單.
The ADSP-BF512/ADSP-BF512F, ADSP-BF514/ADSPBF514F, ADSP-BF516/ADSP-BF516F, ADSP-BF518/ADSPBF518F processors are members of the Blackfin® family of products, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture.
The processors are completely code compatible with other Blackfin processors.
ADSP-BF518主要特性:
Up to 400MHz high performance Blackfin processor
Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs,40-bit shifter
RISC-like register and instruction model for ease of programming and compiler-friendly support
Advanced debug, trace, and performance monitoring
Wide range of operating voltages
Qualified for Automotive Applications
168-ball CSP_BGA or 176-lead LQFP with exposed pad
MEMORY
116K bytes of on-chip memory
External memory controller with glueless support for SDRAM and asynchronous 8-bit and 16-bit memories
Optional 4M bit SPI flash with boot option
Flexible booting options from internal SPI flash, OTP memory, external SPI/parallel memories, or from SPI/UART host devices
Code security with Lockbox secure technology
One-time-programmable (OTP) memory
Memory management unit providing memory protection
PERIPHERALS
IEEE 802.3-compliant 10/100 Ethernet MAC with IEEE 1588 support (ADSP-BF518/ADSP-BF518F only)
Parallel peripheral interface (PPI), supporting ITU-R 656 video data formats
2 dual-channel, full-duplex synchronous serial ports (SPORTs), supporting 8 stereo I2S channels
12 peripheral DMAs, 2 mastered by the Ethernet MAC
2 memory-to-memory DMAs with external request lines
Event handler with 56 interrupt inputs
2 serial peripheral interfaces (SPI)
Removable storage interface (RSI) controller for MMC, SD,
SDIO, and CE-ATA
2 UARTs with IrDA support
2-wire interface (TWI) controller
Eight 32-bit timers/counters with PWM support
3-phase 16-bit center-based PWM unit
32-bit general-purpose counter
Real-time clock (RTC) and watchdog timer
32-bit core timer
40 general-purpose I/Os (GPIOs)
Debug/JTAG interface
On-chip PLL capable of frequency multiplication
ADSP-BF518市場和應用:
VoIP
Industrial Control
Motor Control
Femto Cells
Networked Audio
Instrumentation

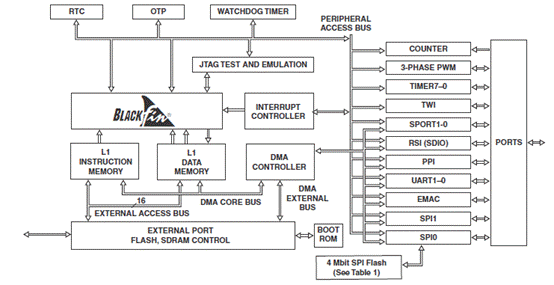

圖1.ADSP-BF518方框圖

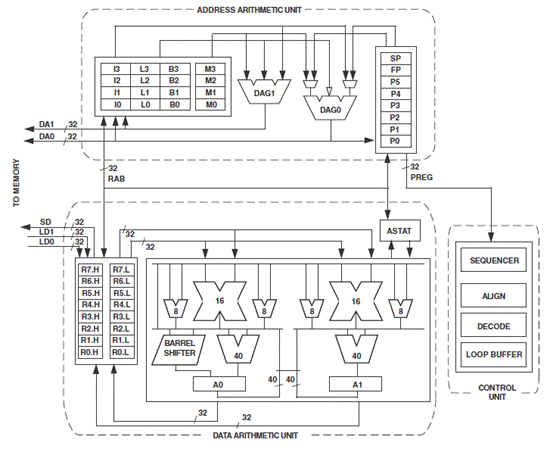

圖2.ADSP-BF518 Blackfin處理器核框圖
ADSP-BF518F EZ-Board評估系統
ADSP-BF518F EZ-BoardTM Evaluation System
This EZ-Board is designed to demonstrate the ADSP-BF518F Blackfin processor capabilities. The processor has an I/O voltage of 3.3V. The core voltage of the processor is controlled by an Analog Devices ADP1715 low dropout regulator (LDO) and an Analog Devices AD5258 digipot, which is configurable over the 2-wire interface (TWI) signals.
The ADSP-BF518F EZ-Board provides example programs to demonstrate the capabilities of the product.

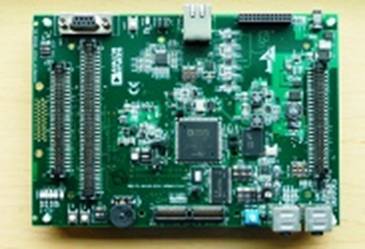

圖3.ADSP-BF518F EZ-Board評估板外形圖
The evaluation board is designed to be used in conjunction with the VisualDSP++® development environment to test the capabilities of the ADSP-BF512/BF512F, ADSP-BF514/BF514F, ADSP-BF516/BF516F,and ADSP-BF518/BF518F Blackfin processors. The VisualDSP++ development environment aids advanced application code development and debug, such as:
• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers
• Plot memory
ADSP-BF518F EZ-Board評估板主要特性:
• Analog Devices ADSP-BF518F Blackfin processor
Core performance up to 400 MHz
External bus performance up to 80 MHz
176-pin LQFP package
25 MHz crystal
• Programmable VDDINT core power
Analog Devices AD5258 TWI digital potentiometer
Analog Devices ADP1715 low dropout linear regulator
• Synchronous dynamic random access memory (SDRAM)
Micron MT48LC32M16A2TG – 64 MB (32M x 16-bits)
• Parallel flash memory
Numonyx M29W320EB – 4 MB (2M x 16-bits)
• eMMC flash memory
Micron MTFC2GDKDM – 2 GB
• SPI flash memory
Numonyx M25P16 – 16 Mb
• Analog audio interface
Analog Devices SSM2603 low-power audio codec
One stereo LINE OUT jack
One headphone LINE IN
One input MIC jack
One input stereo LINE IN jack
• Ethernet interface
National Semiconductor DP83848 PHY device
10-BaseT and 100-BaseTX
Auto-MDIX
• ADC interface
Analog Devices AD7266 2 MSPS, 12-bit, 3-channel SAR analog-to-digital converter
• Thumbwheel
Panasonic EVQ-WKA001 rotary encoder
• Universal asynchronous receiver/transmitter (UART)
ADM3202 RS-232 line driver/receiver
DB9 female connector
• LEDs
Five LEDs: one board reset (red), three general-purpose (amber), one configurable ethernet LEDs (amber) and one power (green)
• Push buttons
Three push buttons: one reset, two programmable flags with debounce logic
• Expansion interface II
Next generation of the expansion interface design, provides access to most of the ADSP-BF518F processor signals
• Land grid array
Easy probing of all port pins and most EBIU signals
• Other features
JTAG ICE 14-pin header
Blackfin power measurement jumpers

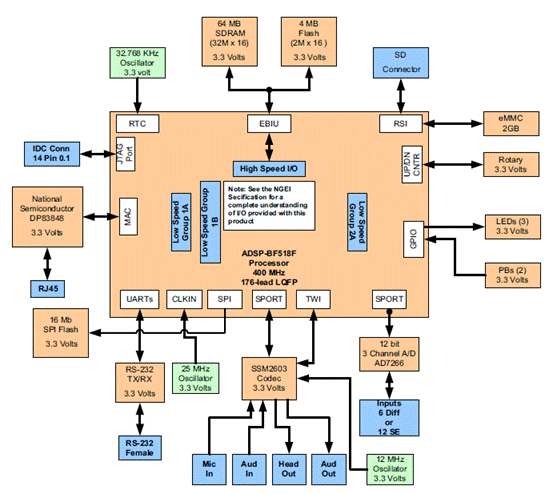

圖4.ADSP-BF518F EZ-Board評估板方框圖

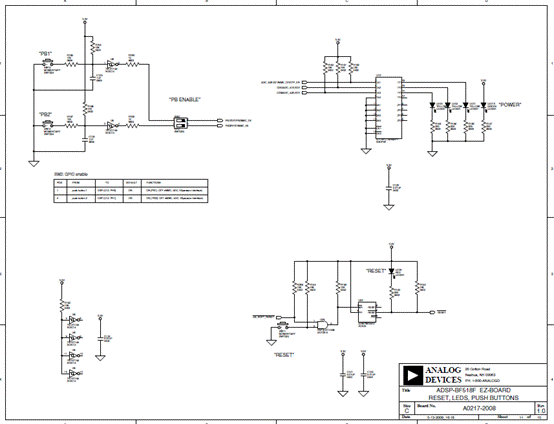

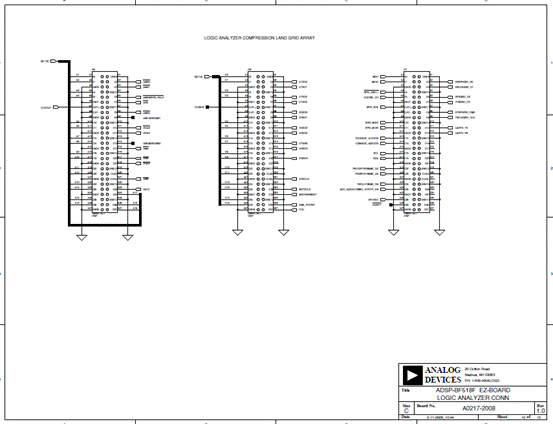

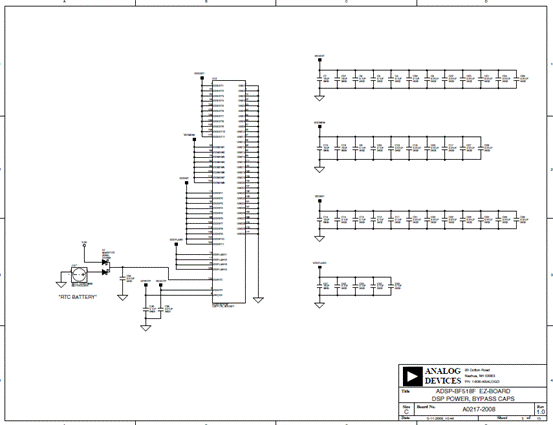

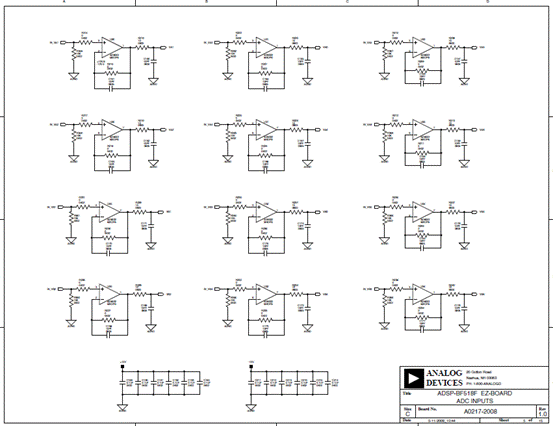

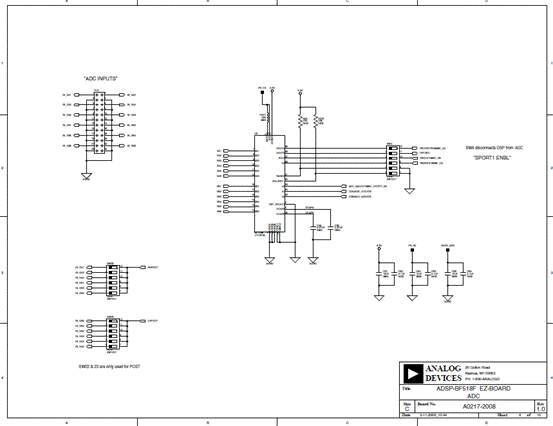

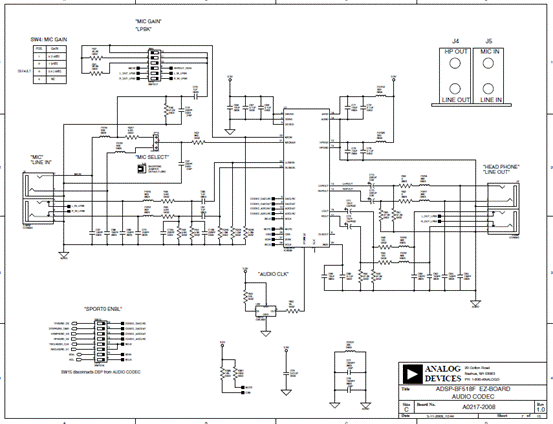

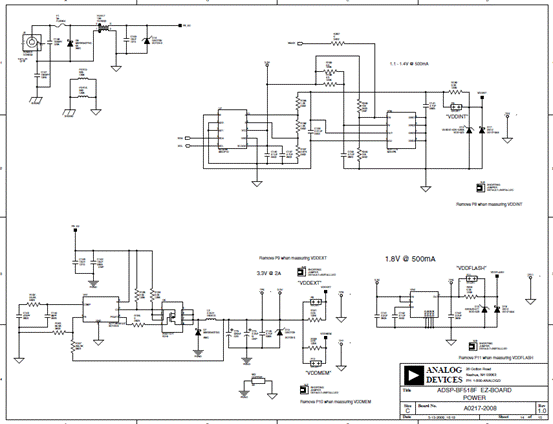

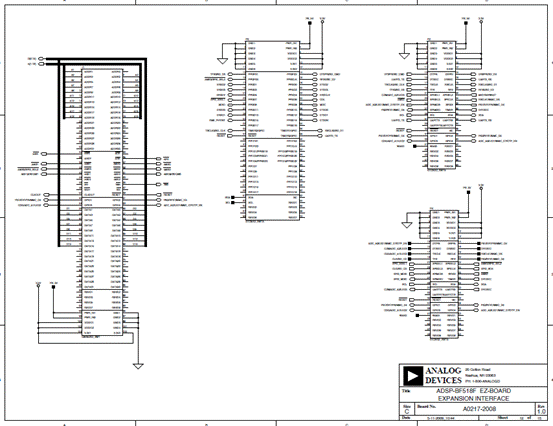

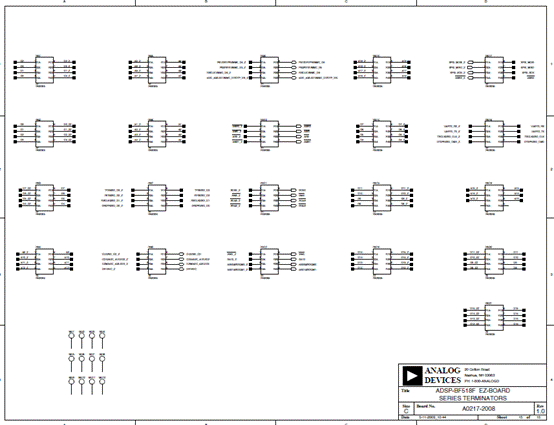

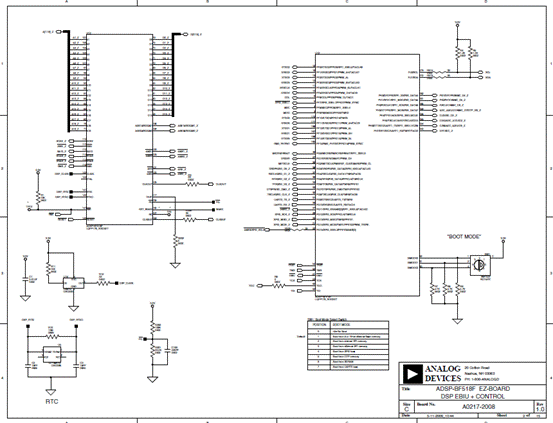

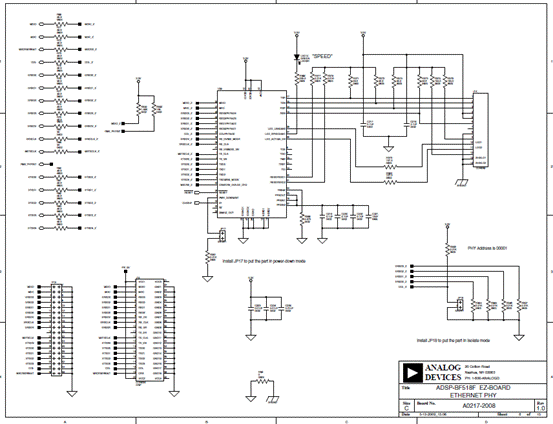

圖5.ADSP-BF518F EZ-Board評估板電路圖(1)

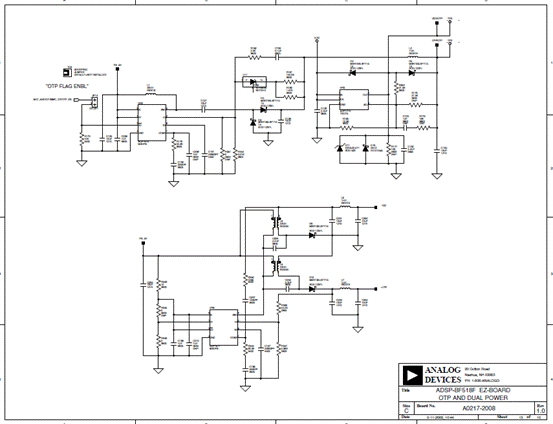

圖6.ADSP-BF518F EZ-Board評估板電路圖(2)

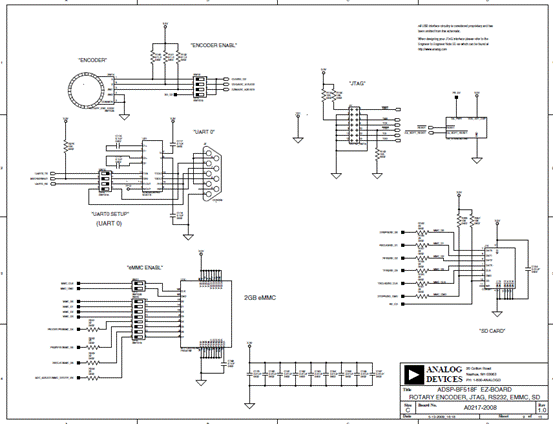

圖7.ADSP-BF518F EZ-Board評估板電路圖(3)

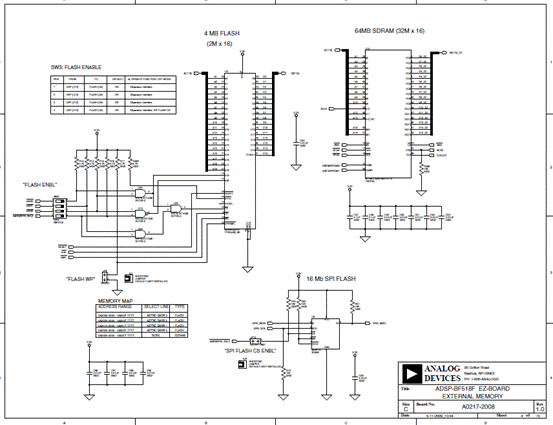

圖8.ADSP-BF518F EZ-Board評估板電路圖(4)
圖9.ADSP-BF518F EZ-Board評估板電路圖(5)
圖10.ADSP-BF518F EZ-Board評估板電路圖(6)
圖11.ADSP-BF518F EZ-Board評估板電路圖(7)
圖12.ADSP-BF518F EZ-Board評估板電路圖(8)
圖13.ADSP-BF518F EZ-Board評估板電路圖(9)
圖14.ADSP-BF518F EZ-Board評估板電路圖(10)
圖15.ADSP-BF518F EZ-Board評估板電路圖(11)
圖16.ADSP-BF518F EZ-Board評估板電路圖(12)
圖17.ADSP-BF518F EZ-Board評估板電路圖(13)
圖18.ADSP-BF518F EZ-Board評估板電路圖(14)

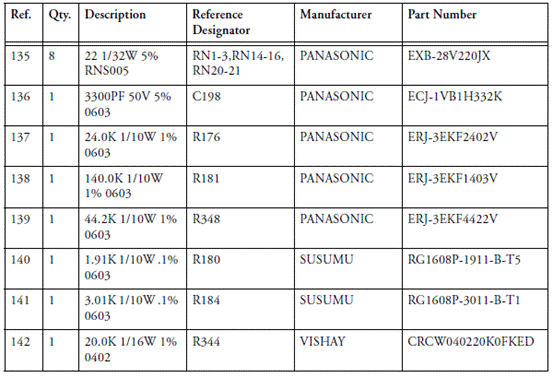

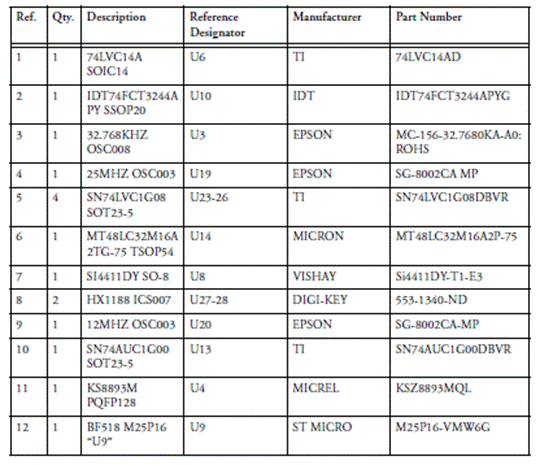

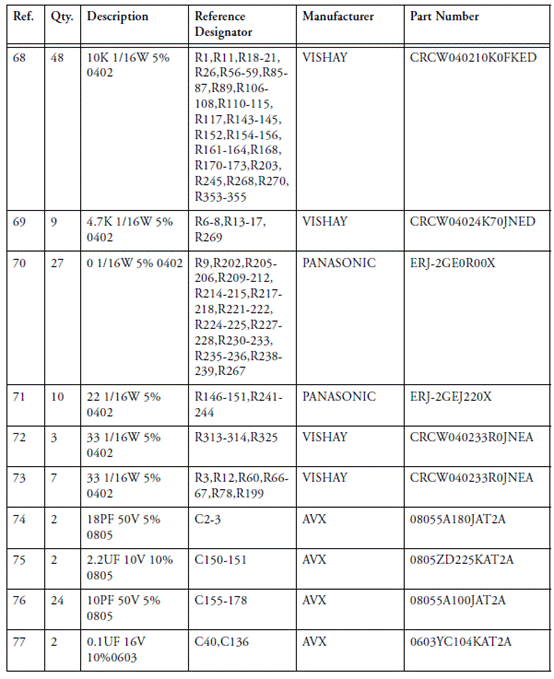

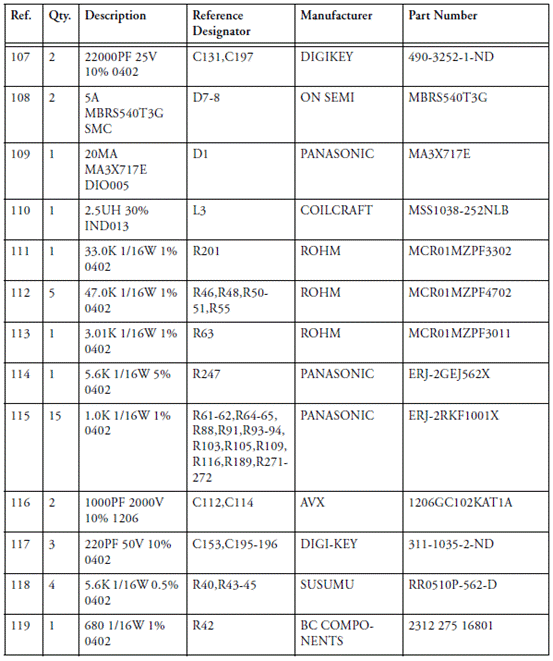

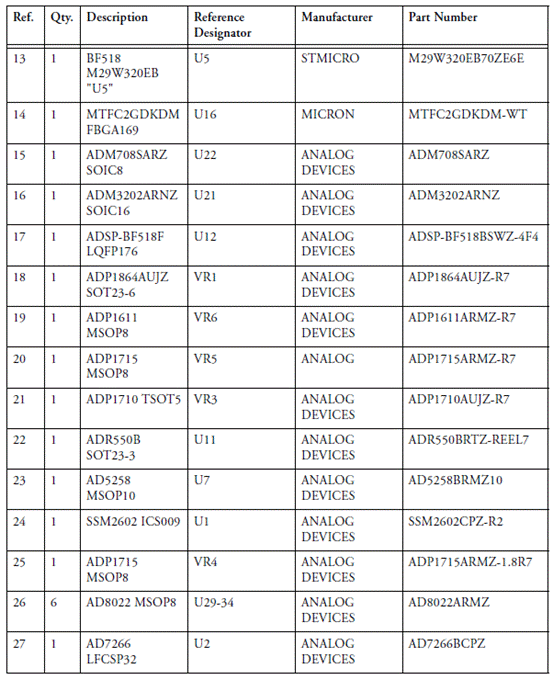

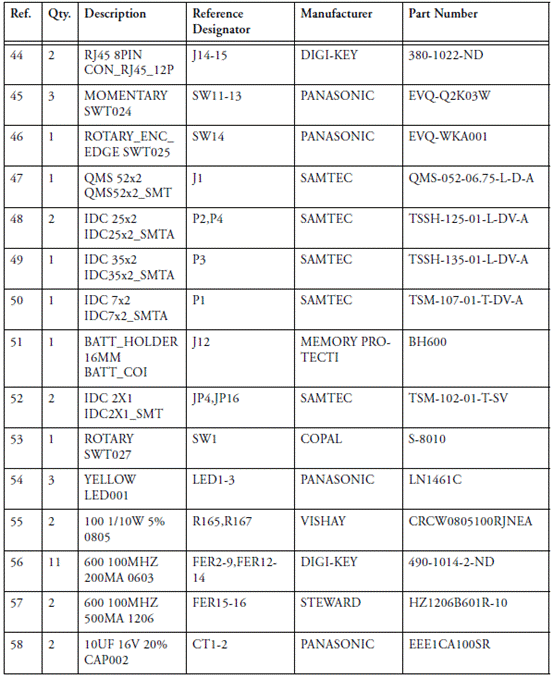

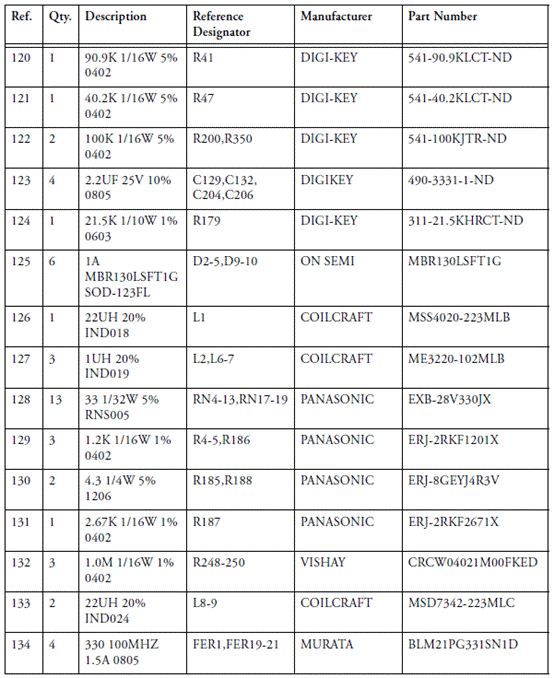

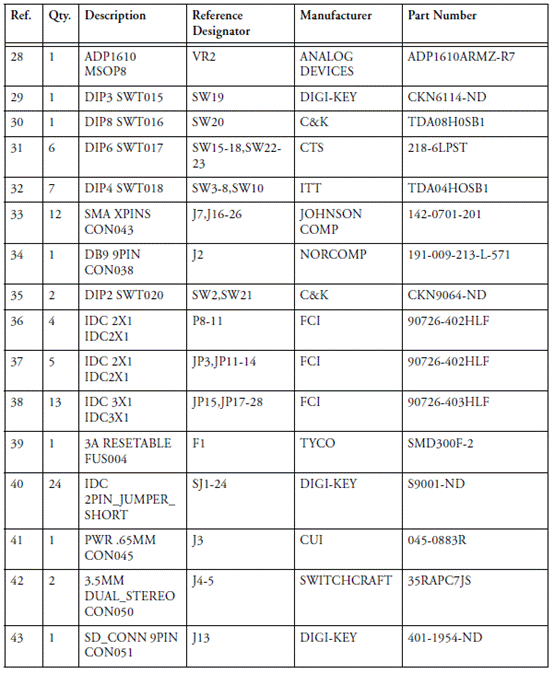

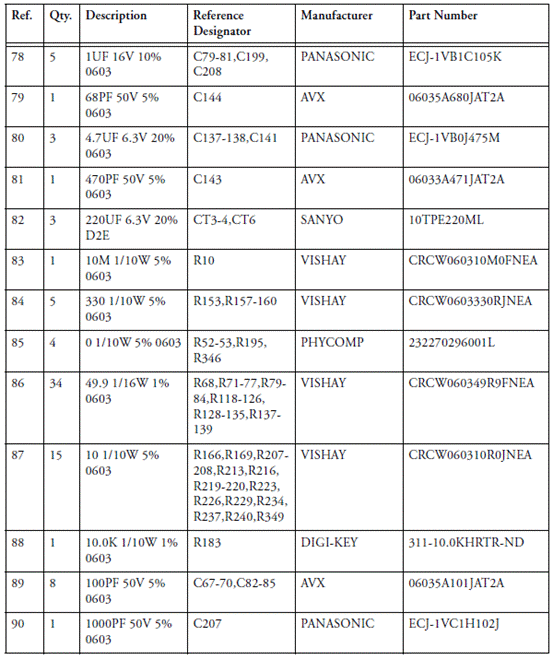

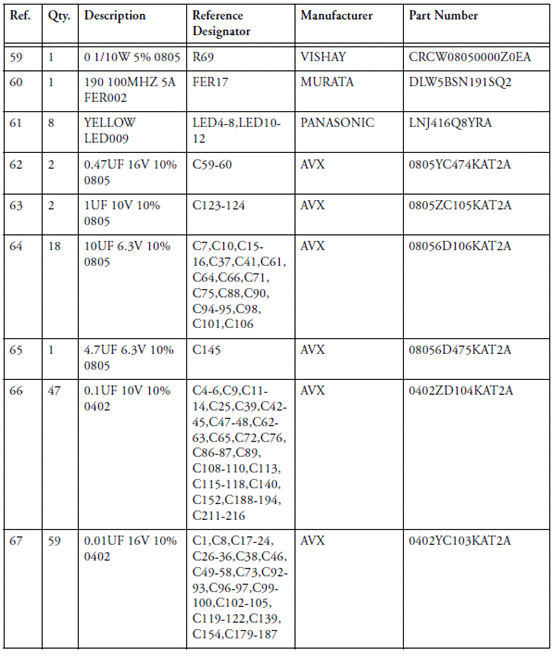

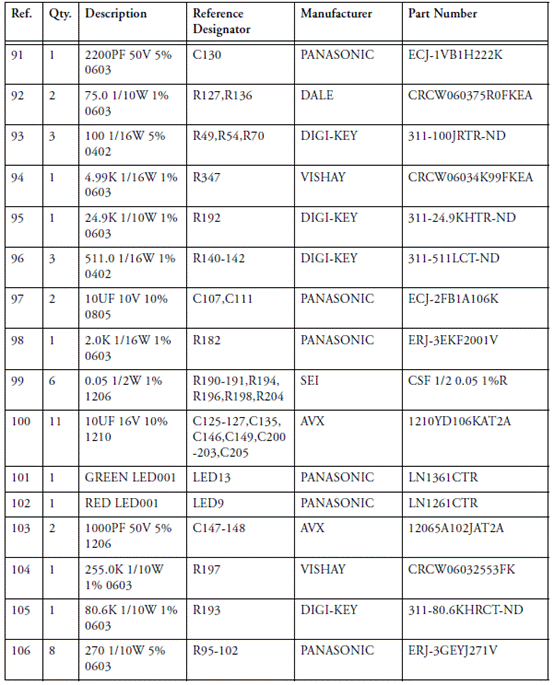

ADSP-BF518F EZ-Board評估板材料清單:
詳情請見:
http://www.analog.com/static/imported-files/data_sheets/ADSPBF512_BF512F_BF514_BF514F_BF516_BF516F_BF518_BF518F.pdf
和
http://www.analog.com/static/imported-files/eval_kit_manuals/ADSP-BF518F%20EZ-Board%20Manual,%20Rev%201_1%20June%202009.pdf
|
|
|
